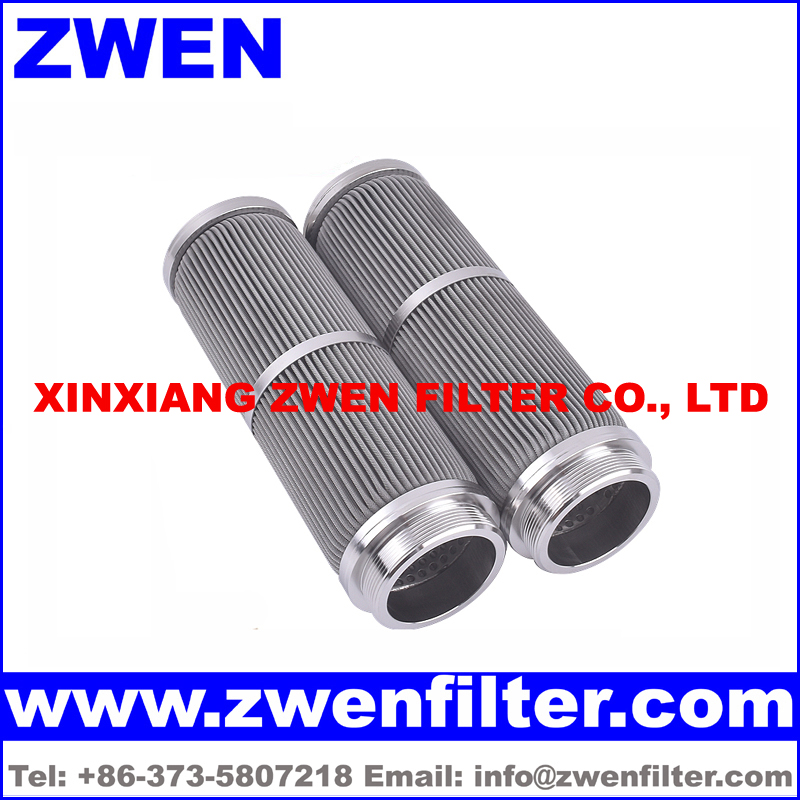

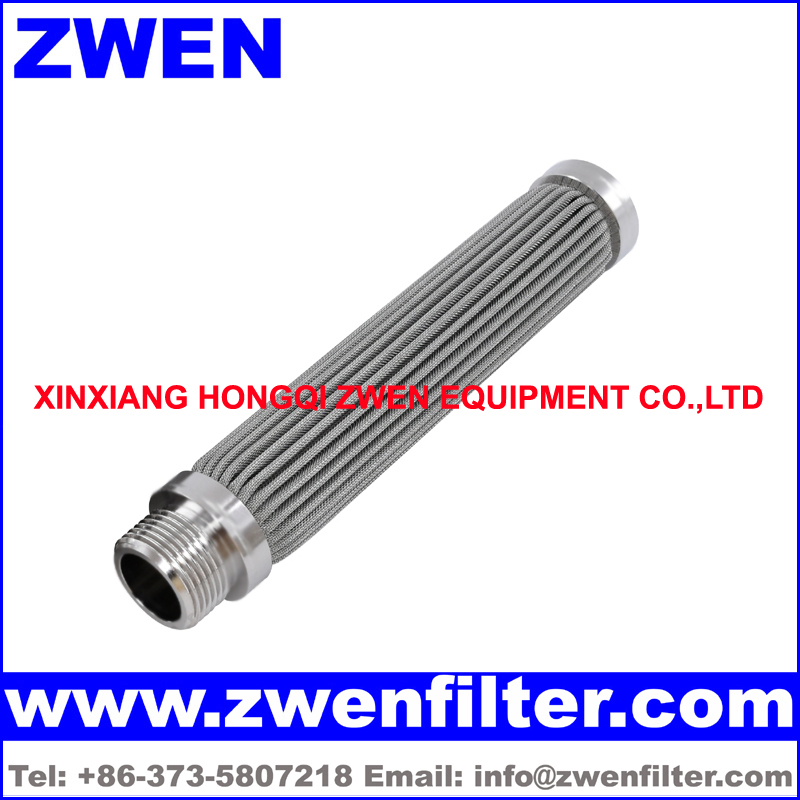

Metallic Pleated Stainless Steel Filter Cartridge Technical Parameter

Raw Material: SS 304, SS 316L

Filter Rating Range: 1 μm ~ 850 μm

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm,

                             110 mm, 130 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization

Metallic Pleated Stainless Steel Filter Cartridge Feature

1. Metallic pleated stainless steel filter cartridge has large filter area

2. Metallic pleated stainless steel filter cartridge has high flow rate

3. Metallic pleated stainless steel filter cartridge is good for backwash

4. High filter efficiency

5. High mechanical strength

6. High temperature resistance

7. High corrosion resistance

8. Long service life

Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)

About Us

XINXIANG ZWEN FILTER CO.,LTD produces sintered fiber felt, sintered mesh, pleated metal filter cartridge (pleated sintered fiber felt filter cartridge, pleated ss filter cartridge, pleated stainless steel filter cartridge, pleated wire mesh filter cartridge), pleated metal filter element (pleated sintered fiber felt filter element, pleated ss filter element, pleated stainless steel filter element, pleated wire mesh filter element), sintered metal filter cartridge (sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter element (sintered mesh filter element, sintered powder filter element), sintered metal filter plate (sintered mesh filter plate, sintered powder filter plate), sintered metal filter sheet (sintered mesh filter sheet, sintered powder filter sheet), sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube), ss frit, stainless steel frit, ti frit, and titanium frit.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
