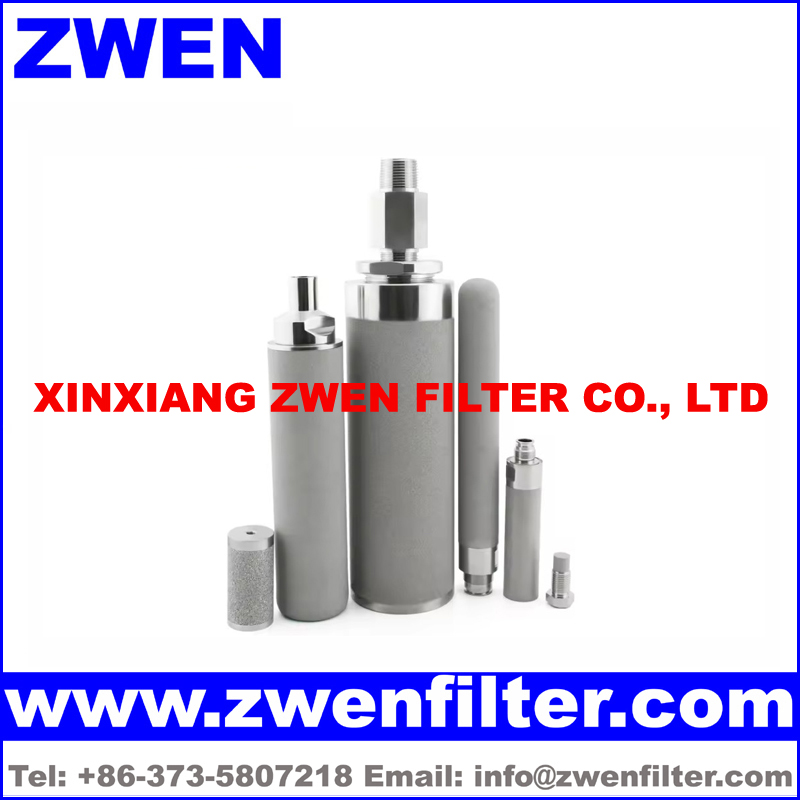

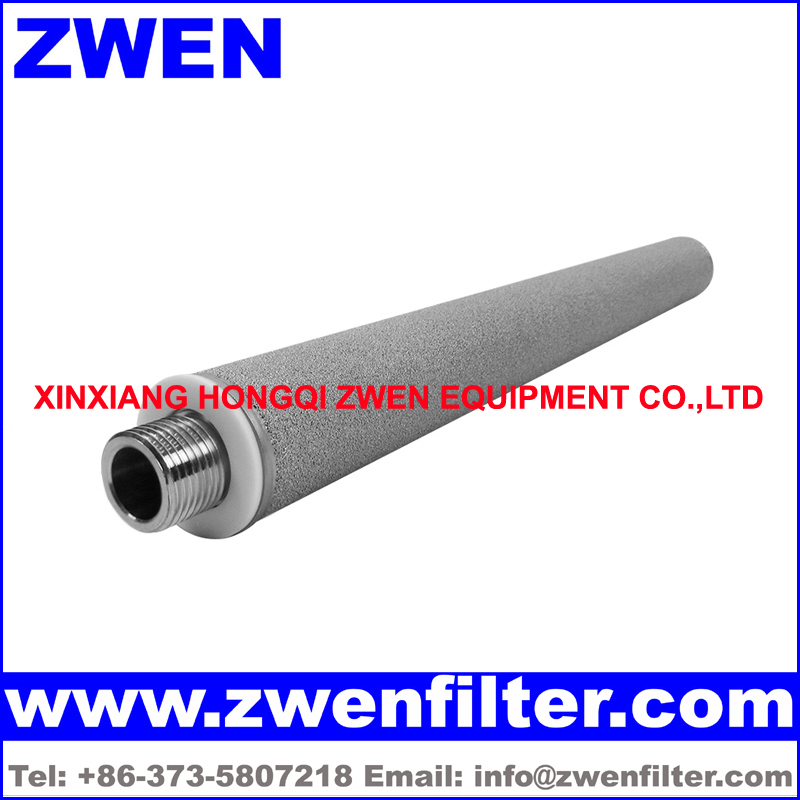

NPT Thread Sintered Powder Filter Cartridge Technical Parameter
Raw Material: SS 316L,Titanium
Filter Rating Range: 0.22 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,
60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor: NPT Male Thread or NPT Female Thread
NPT Thread Sintered Powder Filter Cartridge Feature
1. NPT thread sintered powder filter cartridge has high porosity
2. NPT thread sintered powder filter cartridge is good for backwash
3. NPT thread sintered powder filter cartridge has high mechanical strength
4. High filter efficiency
5. High dirt holding capacity
6. High temperature resistance
7. High corrosion resistance
8. Long service life
Application
1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)
2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)
3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)
4. Catalysts powders recovery
5. Precoat support filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
About Us
XINXIANG ZWEN FILTER CO.,LTD produces NPT thread sintered powder filter candle, NPT thread sintered powder filter cartridge, sintered powder filter disc, sintered powder filter disk, NPT thread sintered powder filter element, sintered powder filter pipe, sintered powder filter plate, NPT thread sintered powder filter rod, sintered powder filter sheet, and sintered powder filter tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
