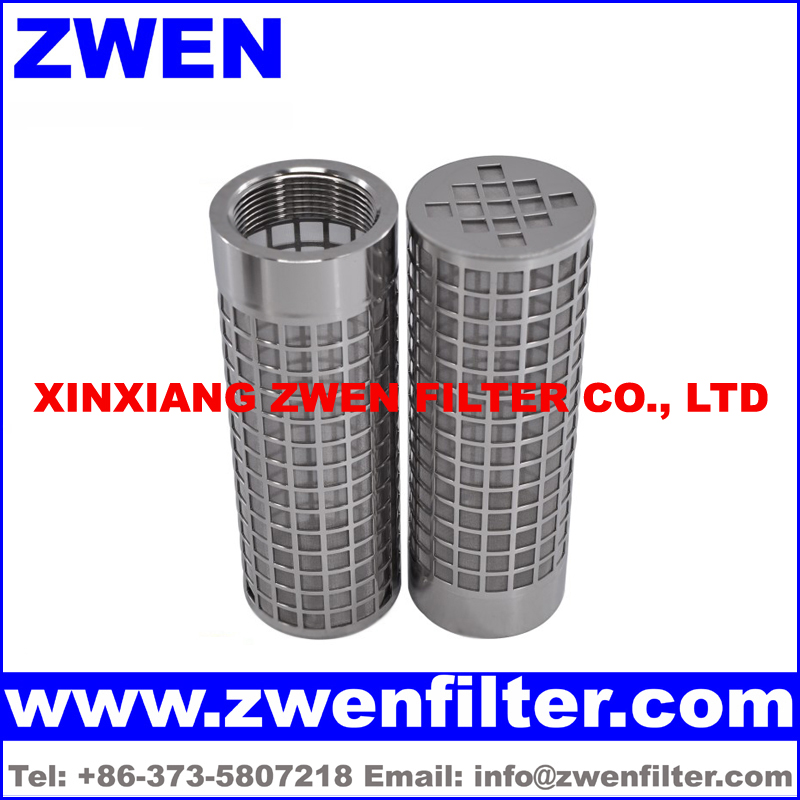

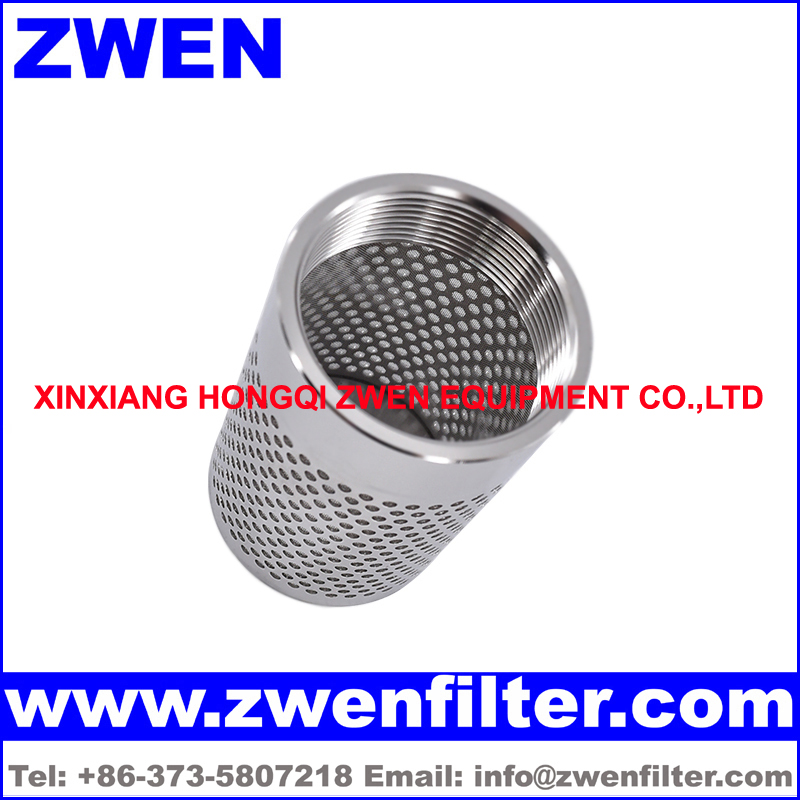

Perforated Plate Sintered Wire Mesh Filter Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Perforated Plate Sintered Wire Mesh

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm, 90 mm,

                             100 mm, 110 mm, 150 mm, 200 mm, 250 mm, 300 mm, 380 mm, 400 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization

Perforated Plate Sintered Wire Mesh Filter Feature

1. Perforated plate sintered wire mesh filter has uniform pore size distribution

2. Perforated plate sintered wire mesh filter is good for backwash

3. High mechanical strength

4. High temperature resistance

5. High filter efficiency

6. High corrosion resistance

7. Long service life

Application

Polymers filtration, high temperature liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, water filtration, beverages filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)

About Us

XINXIANG ZWEN FILTER CO.,LTD produces perforated plate sintered wire mesh filter basket, perforated plate sintered wire mesh filter candle, perforated plate sintered wire mesh filter cartridge, perforated plate sintered wire mesh filter disc, perforated plate sintered wire mesh filter disk, perforated plate sintered wire mesh filter element, perforated plate sintered wire mesh filter pipe, perforated plate sintered wire mesh filter plate, perforated plate sintered wire mesh filter rod, perforated plate sintered wire mesh filter sheet, and perforated plate sintered wire mesh filter tube.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
