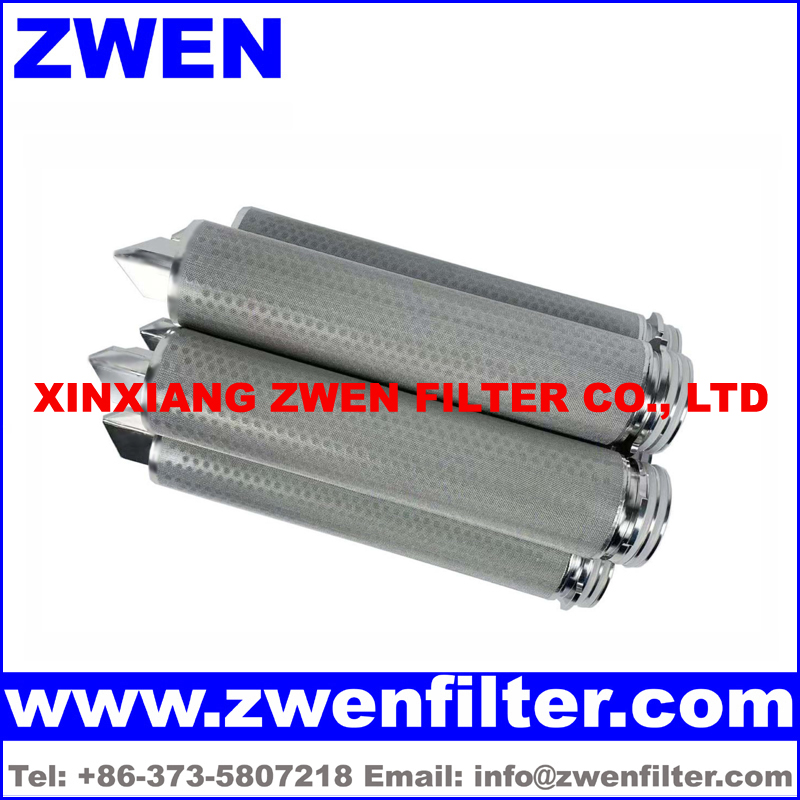

Perforated Plate Sintered Wire Cloth Filter Element

Source:http://www.zwenfilter.com/news/2448.html    Time:2024-10-29    Hits:15

ZWEN------Backwash_Sintered_Filter_Leader



Perforated Plate Sintered Wire Cloth Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Perforated Plate Sintered Wire Cloth

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm, 90 mm,

                             100 mm, 110 mm, 150 mm, 200 mm, 250 mm, 300 mm, 380 mm, 400 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Perforated Plate Sintered Wire Cloth Filter Element Feature

1. Perforated plate sintered wire cloth filter element has uniform pore size distribution

2. Perforated plate sintered wire cloth filter element is good for backwash

3. High mechanical strength

4. High temperature resistance

5. High filter efficiency

6. High corrosion resistance

7. Long service life


Application

Polymers filtration, high temperature liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, water filtration, beverages filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
