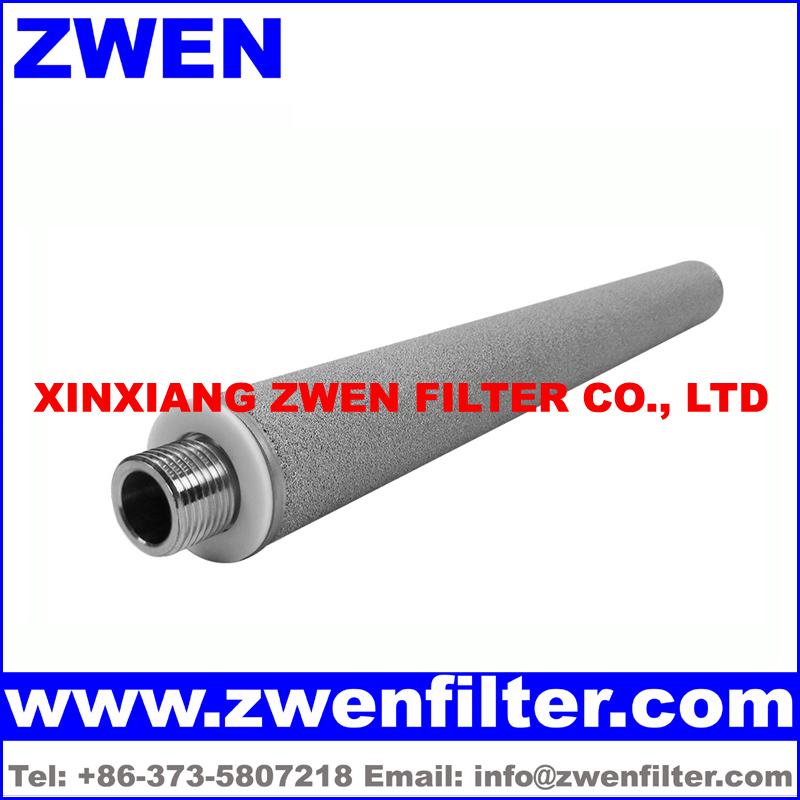

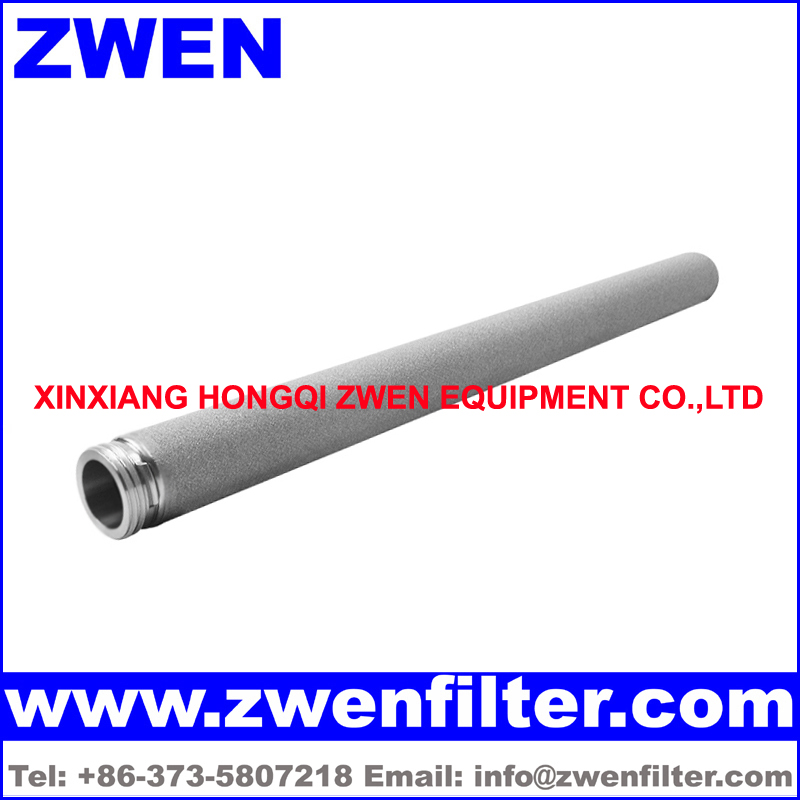

Washable Titanium Sintered Porous Filter Element Technical Data

Raw Material: Titanium

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.9 %

Operation Temperature: ≤ 300 ℃

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization

Washable Titanium Sintered Porous Filter Element Feature

1. Washable titanium sintered porous filter element is biocompatible

2. Washable titanium sintered porous filter element has high porosity

3. Washable titanium sintered porous filter element is good for backwash

4. Washable titanium sintered porous filter element has high mechanical strength

5. High filter efficiency

6. High dirt holding capacity

7. High temperature resistance

8. High corrosion resistance

9. Long service life

Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)

About Us

XINXIANG ZWEN FILTER CO.,LTD produces titanium frit, titanium sintered porous filter candle, titanium sintered porous filter cartridge, titanium sintered porous filter disc, titanium sintered porous filter disk, washable titanium sintered porous filter element, titanium sintered porous filter plate, titanium sintered porous filter rod, titanium sintered porous filter sheet, and titanium sintered porous filter tube.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
