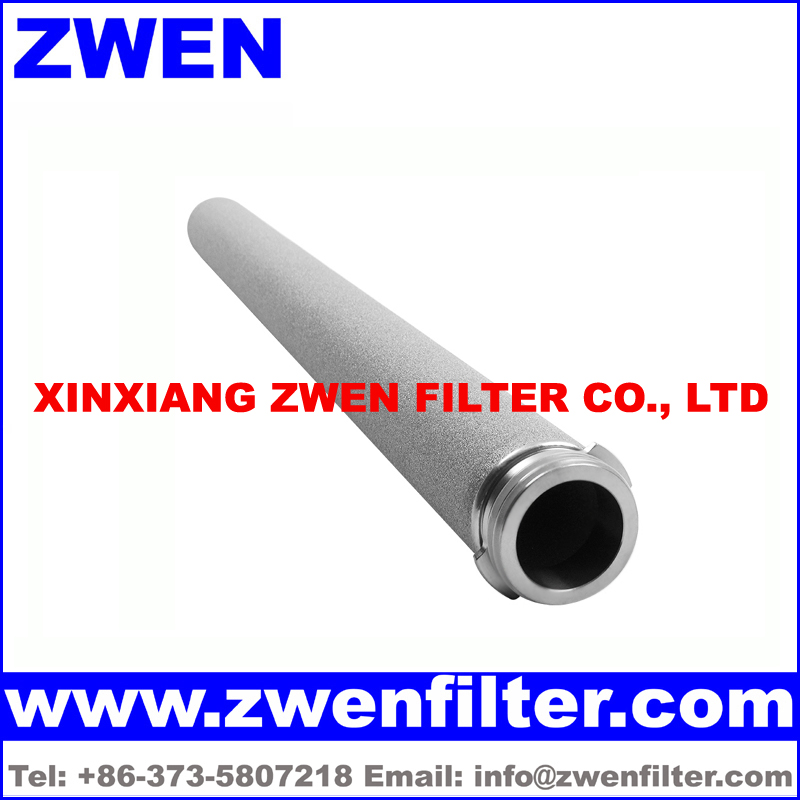

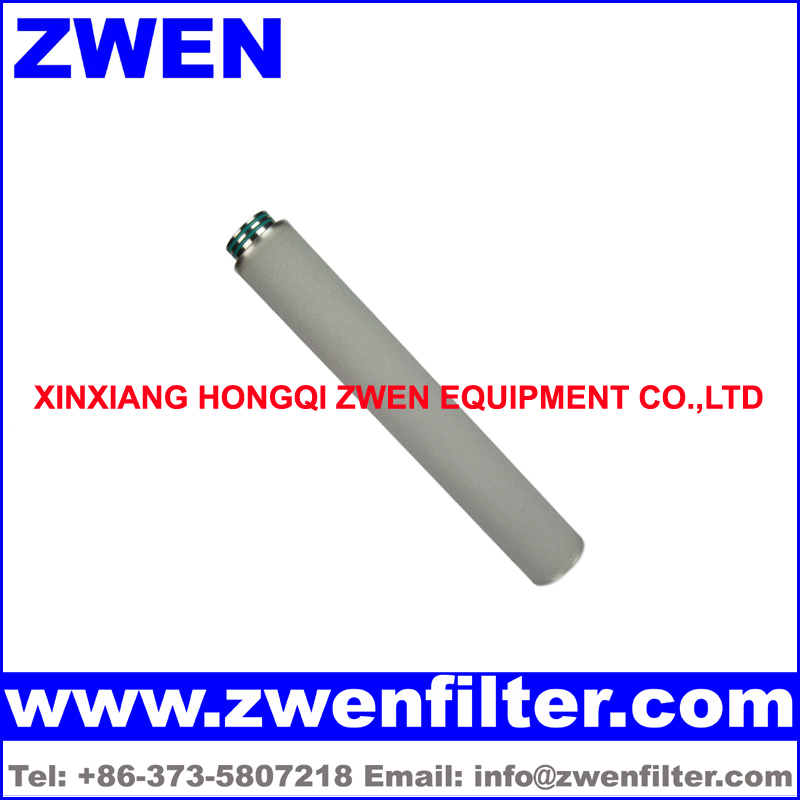

Stainless Steel Sintered Porous Candle Filter Technical Data

Raw Material: SS 316L

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 12 mm, 25 mm, 30 mm, 50 mm, 60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization

Stainless Steel Sintered Porous Candle Filter Feature

1. Stainless steel sintered porous candle filter has high porosity

2. Stainless steel sintered porous candle filter is good for backwash

3. Stainless steel sintered porous candle filter has high mechanical strength

4. High filter efficiency

5. High dirt holding capacity

6. High temperature resistance

7. High corrosion resistance

8. Long service life

Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
