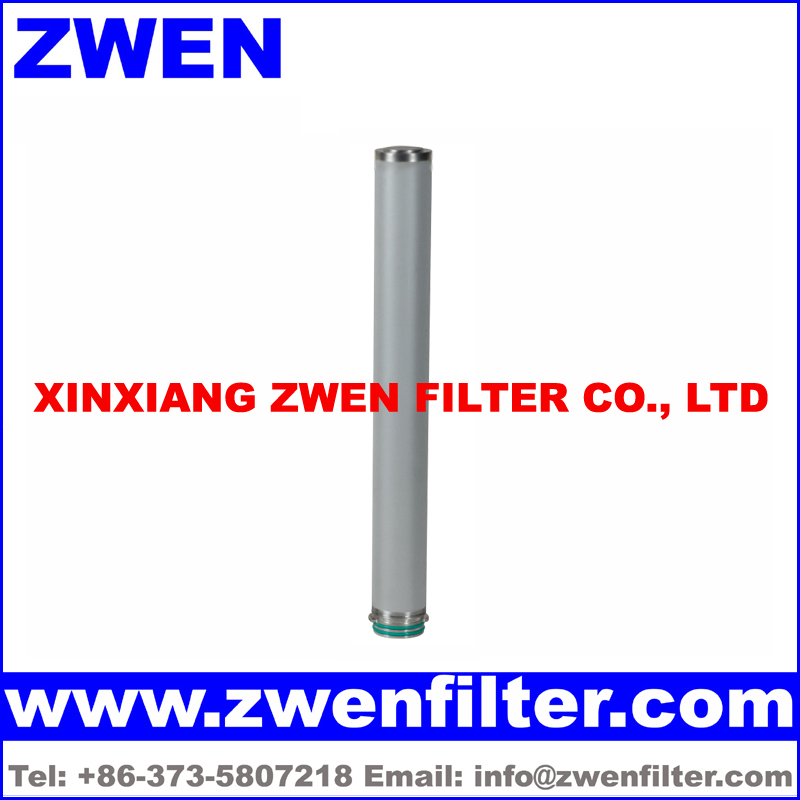

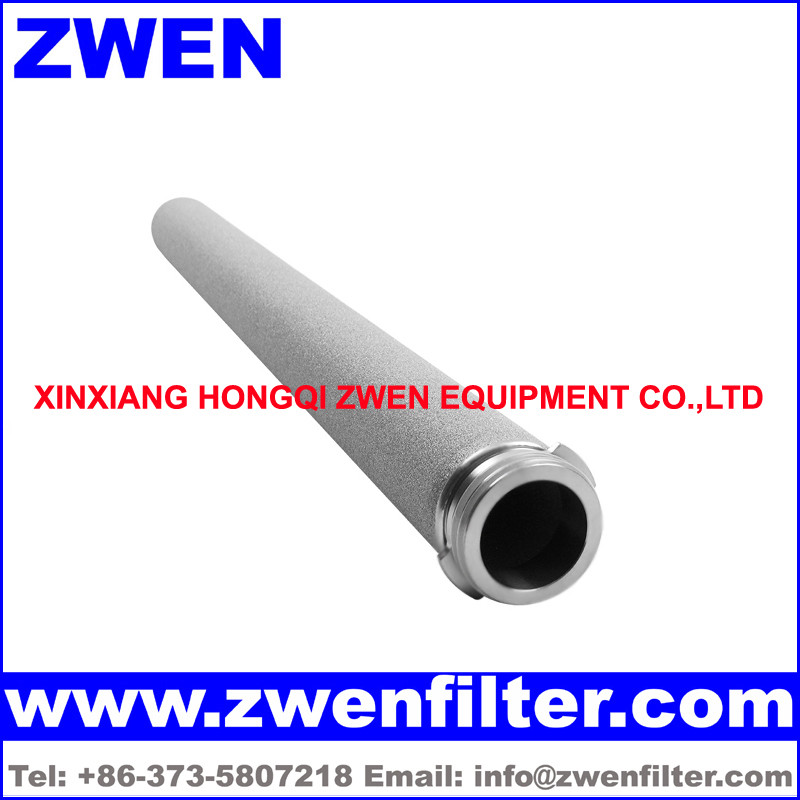

Sintered Porous Candle Filter Technical Parameter

Raw Material: SS 316L,Titanium

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization

Sintered Porous Candle Filter Feature

1. Sintered porous candle filter has high porosity

2. Sintered porous candle filter is good for backwash

3. Sintered porous candle filter has high mechanical strength

4. High filter efficiency

5. High dirt holding capacity

6. High temperature resistance

7. High corrosion resistance

8. Long service life

Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)

About Us

XINXIANG ZWEN FILTER CO.,LTD produces sintered porous candle filter, sintered porous cartridge filter, sintered porous disc filter, sintered porous disk filter, sintered porous element filter, sintered porous pipe filter, sintered porous plate filter, sintered porous rod filter, sintered porous sheet filter, and sintered porous tube filter.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
